Control-command 10 A - 25 A

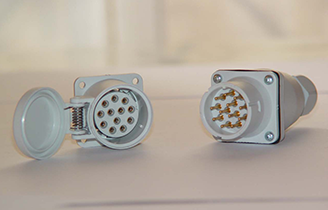

3PL is a multipin connector range very compact, watertight, ideal for assembly of industrial engines without the intervention of qualified personnel.

Thanks to its plug seal and self-closing lid on the socket, 3PL is very watertight, and thus it can be used as well indoor as outdoor.

Max. voltage : 440 V / 690 V
Max. amperage : 25 A
Polarity : 5 to 37 contacts
IP 66 - IP 67 - IK 7
Admissible cable sections : max. 4mm²
Housing : polyamide
Contacts : copper alloy, to clinch or to solder
Fastenings : stainless steel
Temperature range:  -30°C/+60°C
Standard : IEC 60 309 - 1

3PSS range can be used for any industrial applications.

Thanks to its plug seal and self-closing lid on the socket, 3PSS is very watertight, and thus it can be used as well indoor as outdoor.

Moreover, its bayonet locking plug and twist ensures a good vibration resistance.

Its contacts with tip made of silver/nickel alloy, guarantee a very high conductivity and allows to realize a lots of operations.

Max. voltage : 500 V
Max. amperage : 16 A
Polarity : 3 to 12 contacts
IP 66 - IK 7
Admissible cable sections : max. 6mm²
Housing : polyamide 6
Contacts : copper alloy, connection with wire clamp screw (3PSS5), or connection by soldering (3PSS12)
Fastenings : stainless steel
Temperature range:  -30°C/+60°C
Standards : IEC 60 309 - 1
