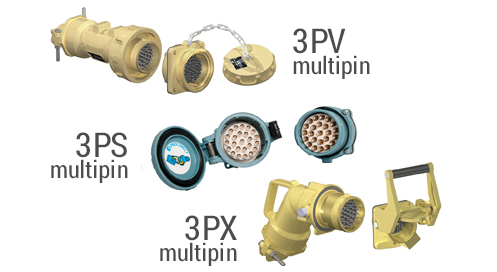

Multipin connectors

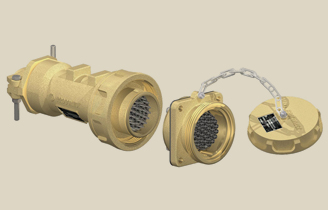

Connection is made simply with a screw ring system, thus it allows an efficient and watertight coupling.


3PV MULTIPIN range is available in 2 different sizes :

  • 3PV4 MULTIPIN :
    until 37 contacts
  • 3PV5 MULTIPIN :
    until 61 contacts
Max. voltage : 500 V
Max. amperage : 30 A
IP 67 - IK 10
Admissible cable sections : 1.5mm² or 6mm²
Housing : aluminum alloy, corrosion proof tempered
Contacts : copper alloy, to clinch or to solder
Fastenings : stainless steel
Temperature range:  -30°C/+60°C
Standard :
IEC 60 309 - 1  /  IEC 60 529  /  NFC 63 300  /  Décret n°88-1056

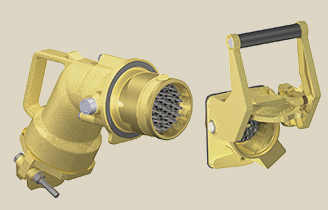

3PX MULTIPIN is equipped with push pull system, which is recommended for regular use or in case of vibration.


3PX MULTIPIN range is available in 2 different sizes :

  • 3PX4 MULTIPIN :
    until 37 contacts
  • 3PX5 MULTIPIN :
    until 61 contacts
Max. voltage : 500 V
Max. amperage : 30 A
IP 67 - IK 10
Admissible cable sections : 1.5mm² or 6mm²
Housing : aluminum alloy, corrosion proof tempered
Contacts : copper alloy, to clinch or to solder
Fastenings : stainless steel
Temperature range:  -30°C/+60°C
Standard :
IEC 60 309 - 1  /  IEC 60 529  /  NFC 63 300  /  Décret n°88-1056

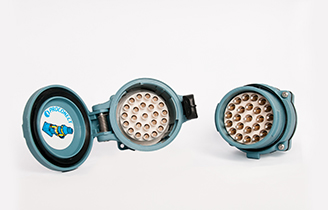

Max. voltage : 500 V
Max. amperage : 30 A
Polarity : 23 P + T
IP 66 - IK 8
Admissible cable sections : 6mm²
Housing : Polyamide 6
Contacts : copper alloy, to clinch or to solder
Fastenings : stainless steel
Temperature range:  -30°C / +60°C
Standard : IEC 60 309 - 1  /  IEC 60 529
Decree n° 88-1056
