Charging connectors for electric vehicle

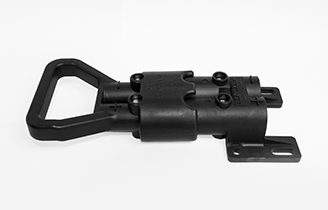

Amperage : 250 A
Polarity : 2 contacts (+/-) + 1 contact pilot in option
Thermoplastic housing
Contacts : copper alloy, to solder
Admissible section cable : 50 mm²
Temperature range : -40°C  to  +125°C

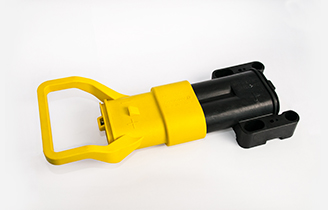

Y socket is the only one on this market to offer an protection index IP54. Thus it responds to ADR 2013 and 2015.

Max. voltage : 150 V
Max. amperage : 250 A
Polarity : 2 contacts (+/-) + 1 contact pilot in option
IP 54 (with watertightness accessories)
Admissible cable sections : 50mm²
Housing : polyamide - acids proof.
Contacts : copper alloy, to clinch or to solder
Fastenings : stainless steel
Temperature range:  -40°C/+125°C
Watertightness accessories : teat, seal, lid

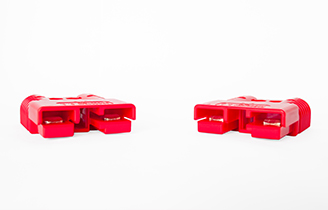

CBE range is available in 2 sizes, which matching to 2 nominal amperages :

  • CBE 160 (160A)
  • CBE 320 (320A)

... it is also available in different colors, which matching to voltage using.

Max. voltage : 600 V
Max. amperage : 160 A and 320 A
Polarity : 2 contacts (+/-) + 2 contact pilot in option
Housing : polycarbonate or polyamide - acids, bases, and hydrocarbons proof
Contacts : electrolytic copper, galvanic silvering, anti-corrosion protection, to clinch or to solder.
Springs : stainless steel
Admissible section cable : max . 70 mm²
Temperature range : -40°C  to  +125°C
Standards : NF EN 1175-1

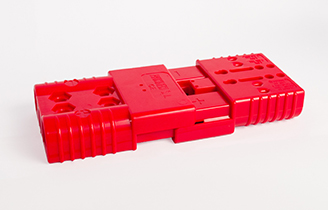

CBX range is available in 2 sizes, which matching to 2 nominal amperages :

  • CBX175 (175A)
  • CBX350 (350A)

… it is also available in different colors matching to voltage using.

Max. voltage : 600 V
Max. amperage : 175 A and 350 A
Polarity : 2 contacts (+/-) + 2 contact pilot in option
Housing : polycarbonate or polyamide - acids, bases, and hydrocarbons proof
Contacts : electrolytic copper, galvanic silvering, anti-corrosion protection, to clinch or to solder
Springs : stainless steel
Admissible section cable : max . 70 mm²
Temperature range : -40°C  to  +125°C

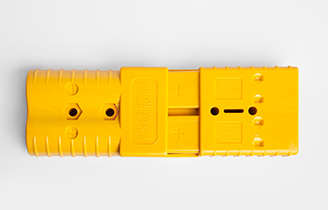

CB range is available in 3 sizes, which matching to 3 nominal amperages :

  • CB50 (50A)
  • CB175 (175A)
  • CB350 (350A)

… it is also available in different colors matching to voltage using.

Max. voltage : 600 V
Max. amperage : 50 A to 350 A
Polarity : 2 contacts (+/-)
Housing : polycarbonate or polyamide - acids, bases, and hydrocarbons proof
Contacts : electrolytic copper, galvanic silvering, anti-corrosion protection, to clinch or to solder
Springs : stainless steel
Admissible section cable : max . 70 mm²
Temperature range : -40°C  to  +125°C

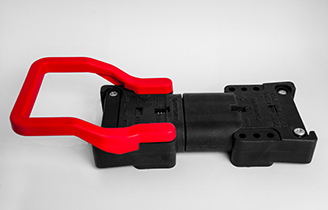

NF range is available in 4 sizes, which matching to 4 nominal amperages :

  • NF80 (80A)
  • NF100 (100A)
  • NF160 (160A)
  • NF320 (320A)
Max. voltage : 150 V DC
Max. amperage : 80 A to 320 A
Polarity : 2 contacts (+/-) + 2 backup contacts in option
IP 23
Thermoplastic housing, acids proof
Contacts : silver plated copper alloy, to clinch or to solder
Coding finger indicating voltage used
Admissible section cable : max . 95 mm²
Temperature range : -20°C  /  +90°C
Standards : NF EN 1175-1 / DIN 43589

Contact us on 02 40 16 35 66 or by e-mail : b.barokhel@proconect.com
Find us : ZAC de la Pentecote, 7-9-11 rue Jean Rouxel 44700 Orvault
