Metal connectors 200 A - 800 A

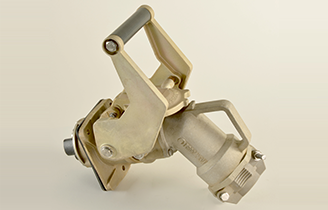

Robustly designed, 3PX range is ideal connector for connection of port cranes and also for quayside applications.

It is also found in railway applications, such coach to coach couplings.

Connection is done thanks to push pull system, which is recommended for regular use in case of vibration.


3PX range is available in 3 different sizes:

  • 3PX4 : 200 A - 250 A
  • 3PX5 : 350 A - 570 A
  • 3PX6 : 630 A - 800 A
Max. voltage : 3.3 kV
Polarity : 3P + N + 2p
IP 67 - IK 10
Admissible cable sections : max. 240 mm²
Housing : aluminum alloy, corrosion proof tempered
Contacts : copper alloy, to clinch or to solder
Fastenings : stainless steel
Temperature range -30°C/+60°C
Standards :
IEC 60 309 - 1  /  NFC 63 300  /  IEC 60 529  /  décret n° 88-1056

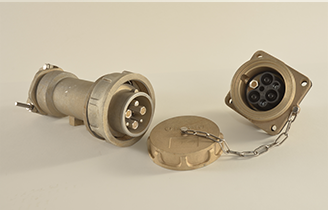

Robustly designed, 3PV range is ideal connector for connecting of mining equipment (loaders, excavators …), for the atmosphere port cranes connection as well.

Connection is made simply with a screw ring system, thus it allows an efficient and watertight coupling.


3PV range is available in 3 different sizes :

  • 3PV4 : 200-250A
  • 3PV5 : 350-570A
  • 3PV6 : 630-800A
Max. voltage : 3.3 kV
Polarity : 3P + N + 2p
IP 67 - IK 10
Admissible cable sections : max. 240 mm²
Housing : aluminum alloy, corrosion proof tempered
Contacts : copper alloy, to clinch or to solder
Fastenings : stainless steel
Temperature range -30°C/+60°C
Standards :
IEC 60 309 - 1 / NFC 63 300 / IEC 60 529 / Décret n° 88-1056
