Single pole connectors < 800 A

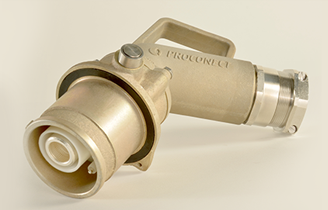

3PXU sockets allows the connection of big SINGLE POLE cables (max 300 mm²) and can be used in all industries needing high power:

Harbours :  ship to ship, or ship to shore connections

Railways : train maintenance, cleaning …

Max. voltage : 1500 V AC / 110 V DC (phase/pilots)
Intensité max. : 800A/30A (phases/pilotes)
Polarity : 1+2p
IP 66 - IP 67 - IK 10
Admissible cable sections : max. 300mm²
Housing : aluminum alloy, corrosion proof tempered
Contacts : copper alloy, to clinch or to solder , (or coupling on side screw terminal)
Fastenings : stainless steel
Temperature range: -30°C/+60°C
24 different insert positions
Option : microswitch
Standard :
IEC 60 309 - 1 / IEC 60 529 / Décret n°88-1056

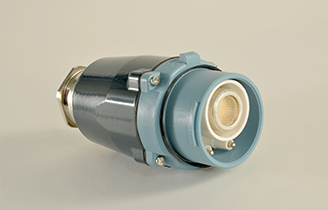

3PU sockets allows the connection of big SINGLE POLE cables (max 300 mm²) and can be used in all industries needing high power:



Railways : train maintenance, cleaning …

Shelters power, civil or military

Test panels for generator sets



Max. voltage : 1500 V AC   /         110 V DC (phase/pilots)
Max. amperage : 800 A / 30 A (phase/pilots)
Polarity : 1+2p
IP 66 - IP 67 - IK 8
Admissible cable sections : max. 300mm²
Housing : Polyamide 6
Contacts : copper alloy, to clinch or to solder , (or coupling on side screw terminal)
Fastenings : stainless steel
Temperature range:  -30°C/+60°C
24 different insert positions
Version with padlocking lach
Standard :
IEC 60 309 - 1  /  IEC 60 529  /  Décret n°88-1056
