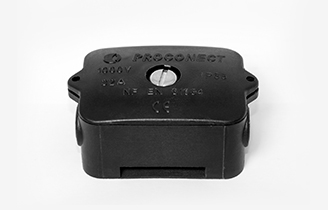

HELIOBOX is an original system used to connect quickly solar panels together.

Connection is made using insulation displacement contacts IDC, (no need of removing the cable insulation).

Max. voltage : 1000 V DC
Amperage : 32 A
Tin plated bronze insulation displacement contacts
Housing : reinforced glass fiber PA6
Fastenings : stainless steel
Pull out force withstand : 80 N
IP65  -  IK7
Admissible section cable : 6mm² max.
Dimensions : 45mm x 62mm x 32mm
Standards : IEC 61 215  /  IEC 61 730

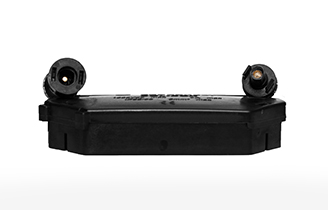

SOLBOX is designed for the connection of conductive strips to collect electrical energy issued by solar panels.

Very compact, SOLBOX allows connecting up to 6 lines in a few seconds without any specific tool.

The links between two panels can be assured by single pole connectors or with the HELIOBOX system.

Max. voltage : 1000 V DC max.
Amperage : 18 A
Tin plated bronze
Nb strips : 6 max.
IP65 - IK7
Housing : reinforced glass fiber PA6
Derivation by single pole connector 4mm² or by HELIOBOX system
Fastenings : stainless steel
Pull out force withstand : 80 N
Dimensions : 57 mm x 127 mm x 26 mm
Standards : IEC 61215  /  IEC 61730

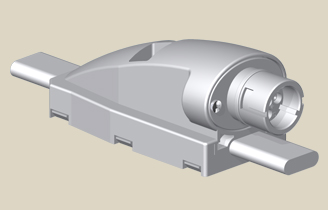

Watertight derivation box for flat cable.

The connection is made through insulating displacement forks so the main cable has not to be cut.

One derivation to one plug allows to connect any equipment (light, motor, ...) after the cable installation.

Max. voltage : 400 V
Max. amperage : 12 A
Housing : polyamide, reinforced glass fiber PA6
IP65 - IK7
4 tin plated bronze insulation displacement contacts IDC, for flat cable 4G4
Bypass by 3PL0 (2.5mm²) connector
Fastenings : stainless steel
Pull out force withstand : 80 N
Standards : NF EN 61 984   /  IEC 60 529

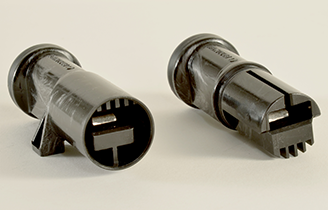

CBXU is a single pole connector, compact and watertight. It allows a easy and quickly connection.

CBXU is available in 5 different colors not compatible, allowed not to make visual and mechanical confusing :

  • L1
  • L2
  • L3
  • N
  • T
Max. voltage : 600 V
Max. amperage : 175A
Housing : polycarbonate
IP54
Contacts : electrolytic copper, galvanic silvering, anti-corrosion protection, to clinch or to solder
Admissible section cable : 35mm² to 50 mm²
Temperature range : -40°C  to  +125°C
Watertightness accessories included: teat, O'ring
